What Is a Locator Plate in Packaging Machinery?

A packaging machine locator plate is a high-precision, CNC machined assembly plate designed to position, align, and secure critical packaging components. Serving as the primary mechanical baseline, this precision mounting plate integrates ground datum surfaces, precision-reamed locating pin holes, and rigid fastening points to maintain accurate alignment across automated packaging lines.

How Locator Plates Establish Repeatable Component Positioning

In high-speed automated packaging, minor mechanical misalignments cause frequent downtime, material jams, and premature hardware wear. Precision locator plates lock machine modules into exact geometric positions to preserve system integrity:

• • Dowel Pin Alignment: Precision-reamed dowel pin holes eliminate rotational and translational drift, ensuring exact component placement.
  • Fixed Reference Datums: Ground datum faces maintain consistent height, parallelism, and perpendicularity relative to the machine frame.
  • Rapid Repeatability: Maintenance teams can swap modular tooling and change parts without time-consuming manual calibration or gauge setup.

Custom Manufacturing to OEM Drawings and CAD Models

Every CNC machined locator plate is manufactured strictly to your original OEM engineering prints, 2D drawings, or 3D CAD models. Adherence to strict Geometric Dimensioning and Tolerancing (GD&T) guarantees direct drop-in replacement for existing packaging equipment.

Critical Features of Precision Locator Plates

Datum Surfaces and Reference Features

We machine master datum surfaces directly into every packaging machine locator plate to establish absolute zero points. Precision-ground reference edges eliminate tolerance stack-up during assembly, allowing technicians to index sub-assemblies instantly without manual shimming.

Locating Pin and Dowel Hole Positions

Accurate dowel pin alignment depends entirely on precise hole center distances. We bore locating pin holes with tight diametrical tolerances to ensure zero-play fitment and instant alignment repeatability. When producing complex machine assembly plates with contoured datum faces, specialized cam profile machining strategies allow us to hold exact geometric relationships across every hole pattern.

Mounting Holes, Counterbores, and Threaded Features

A custom CNC fixture plate requires integrated fastener features to maintain structural stiffness under heavy dynamic loads:
Precision Counterbores: Recess screw heads below the datum plane for flush module mounting.
Tapped Threads: Provide high clamp load capacity for rigid module fixation.
Clearance Holes: Facilitate fast rough-positioning prior to dowel pin engagement.

Flatness, Parallelism, and Perpendicularity Requirements

Tight geometric controls prevent binding and premature wear on packaging machine alignment components. We stress-relieve plate stock before final machining passes to meet strict GD&T standards across every precision mounting plate.

Materials for Packaging Machine Locator Plates

Selecting the right material for a packaging machine locator plate ensures long-term dimensional stability, wear resistance, and precise alignment under continuous production cycles. We manufacture custom precision locator plates tailored to your exact mechanical loads, operating conditions, and OEM drawing specifications.

6061 Aluminum for Lightweight Machined Plates

For high-speed packaging lines where mass directly impacts cycle times, aluminum is the industry standard. It provides an optimal strength-to-weight ratio, excellent machinability, and cost-effective production for complex geometries.

• • Weight Reduction: Ideal for end-of-arm tooling, robotic pick-and-place units, and frequent format changeovers.
  • Surface Protection: Easily anodized or hard-coated to improve surface hardness and resist mild abrasion.
  • Machining Precision: We regularly produce custom 6061-T6 aluminum CNC parts for packaging machines that demand strict geometric tolerances without adding unnecessary weight to moving assemblies.

Stainless Steel for Washdown and Corrosive Environments

Sanitary packaging environments—such as food processing, beverage bottling, and pharmaceutical packaging—require materials that withstand aggressive chemical washdowns, steam cleaning, and constant moisture.

• • 304 & 316 Stainless: Offers outstanding corrosion resistance, preventing rust in wet or caustic processing environments.
  • 17-4 PH Stainless: Combines high yield strength and extreme hardness with excellent corrosion resistance. Understanding when 17-4 PH makes sense for high-load packaging parts helps prevent premature wear on locating features subject to heavy clamping forces.

Tool Steel for High-Load and Wear-Critical Applications

When precision locator plates face extreme clamping forces, continuous sliding friction, or heavy mechanical impact, tool steel delivers maximum surface durability.

• • A2 & D2 Grades: Provides superior resistance to deformation, galling, and edge wear across critical dowel pin holes and reference datums.
  • Precision Heat Treatment: Hardened and stress-relieved to hold sub-mil tolerances across millions of operational cycles.

Selecting Material According to Load, Environment, and Drawing Requirements

Choosing the optimal material requires balancing mechanical stress, washdown demands, and weight constraints against your engineered print specs.

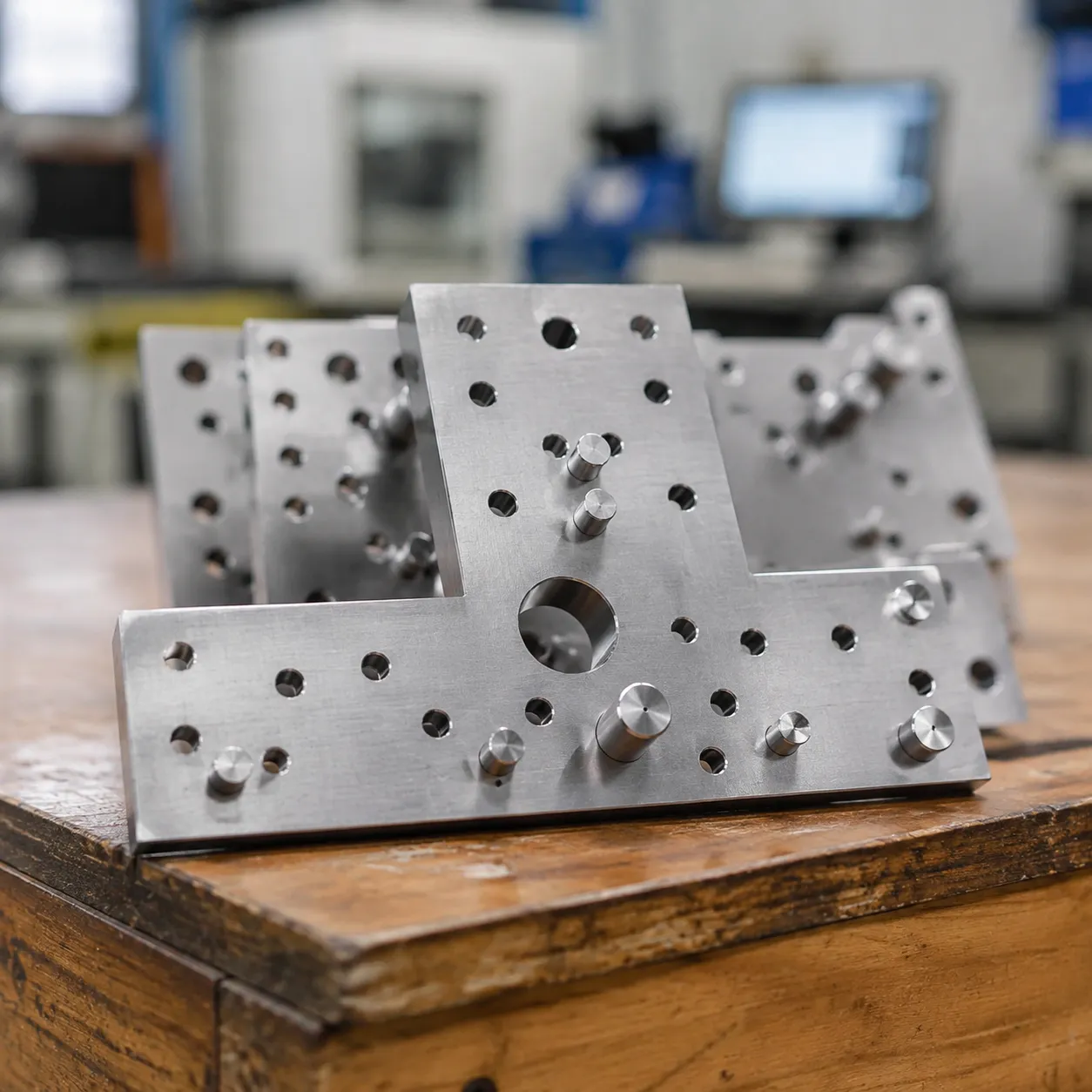

CNC Machining of Precision Locator Plates

We manufacture custom precision locator plates for packaging machine assemblies using high-precision CNC machining to ensure absolute accuracy and repeatable component placement on your production line.

Precision Milling of Plate Surfaces and Profiles

We execute precise face milling and profiling operations to build flat, stable datum surfaces required for packaging machinery components.

• • Surface Flatness: High-speed milling passes maintain tight planarity across the entire plate surface.
  • Edge Profiling: Clean perimeter cuts eliminate stress points and match precise enclosure parameters.
  • Custom Capability: Using advanced machining processes similar to our manufacturing of custom CNC machined plates, we guarantee dimensional stability for critical packaging machine alignment components.

Machining Accurate Hole Patterns and Locating Features

Precision hole layouts ensure seamless positioning for machine assembly plates and custom CNC fixture plates.

• • Center-Distance Accuracy: CNC drilling and precision boring guarantee exact center-to-center distances across all locating pin holes.
  • Feature Integration: Counterbores, clearance holes, and threaded features are machined in a single setup to eliminate tolerance stacking errors.

Controlling Distortion in Large or Thin Plates

Machining forces can cause thin or expansive precision mounting plates to warp. We implement strict stress-management protocols during production:

Reaming and Finishing Critical Dowel and Locating Holes

Standard drilling cannot deliver the accuracy required for high-cycle packaging machine change parts.

• • Precision Reaming: Micro-finished carbide reamers create tight-tolerance dowel pin alignment holes.
  • Zero-Play Fit: Holds micron-level hole diameters to guarantee repeatable component replacement.
  • Surface Integrity: Smooth hole walls prevent galling during frequent pin insertion and removal.

Locator Plates in Packaging Machine Changeovers

Repeatable Positioning of Change Parts and Machine Modules

We build precision locator plates to serve as the true structural reference during fast production shifts. When operators swap tooling or modular assemblies, the precision locator plate locks each component into its exact spatial coordinate without manual dialing. Combining ground reference faces with hardened dowel pin alignment ensures every sub-assembly drops directly into position with high repeatability.

Reducing Alignment Work During Product Format Changes

Frequent format switches can consume valuable production time if technicians must manually align every station. Integrating a CNC machined locator plate into your assembly setup streamlines format switching into a simple lock-and-go process.

• • Zero-adjustment positioning: Tooling seats flat against ground datum faces automatically.
  • Instant registration: Pre-machined pin patterns lock modules into position without optical alignment.
  • Faster turnarounds: Operators can swap out custom 17-4PH change parts for packaging machinery without using shims or dial indicators.

Interchangeability of Replacement Locator Plates

High-speed packaging lines demand wear parts that swap out effortlessly. We manufacture each machine assembly plate to exact CAD models, ensuring replacement plates fit identical footprint specifications. Every replacement unit maintains identical hole pattern locations, surface flatness, and thickness tolerances, guaranteeing seamless interchangeability across your entire fleet of packaging machines.

Maintaining Datum Consistency Across Replacement Components

Maintaining long-term machinery precision requires strict geometric control across every batch of spare components.

• • Fixed zero-points: Primary and secondary datums remain identical from prototype to production runs.
  • Tight center-distance control: Hole-to-hole centerlines are held within micron-level tolerances across replacements.
  • Preserved machine centerline: Swapping a worn precision mounting plate preserves the core mechanical alignment of the packaging machine.

Applications in Packaging Machinery

Filling and Capping Machine Assemblies

In liquid and powder filling operations, precise component alignment prevents costly spills and machine downtime. A precision locator plate locks nozzles, star wheels, and capping heads directly above containers with zero guesswork. We machine these high-accuracy plates alongside custom 316L piston assemblies for yogurt filling machines to ensure hygienic, perfectly synchronized dosing cycles.

Cartoning and Case-Packing Equipment

Continuous cartoners and end-of-line case packers rely on precise dowel pin alignment to secure guide rails, carton pushers, and tucking mechanisms.

• • Eliminates Jam-Ups: Holds structural tooling rigid during high-speed insert cycles.
  • Simplifies Format Changes: Provides exact center-line positioning across varying box sizes.

Conveyor and Product-Handling Modules

Smooth transfers between processing stages require accurate machine assembly plate positioning. Installing durable locator plates ensures side guides, transfer plates, and sensor brackets stay firmly aligned despite constant line vibration. For high-wear transfer zones, we complement these plates with custom titanium guide components for packaging equipment to maintain long-term reliability across multi-shift operations.

Labeling and Inspection Equipment

Label applicators, vision systems, and checkweighers demand accurate datum positioning to maintain strict quality control standards.

• • Vision System Accuracy: Guarantees camera modules align consistently with moving packages.
  • Precise Placement: Prevents label skew by maintaining rigid mounting for printer heads and dispenser plates.

Custom Automation and Packaging Fixtures

For specialized packaging machinery components and custom automation cells, a precision mounting plate forms the core foundation. These CNC machined plates serve as the reliable datum baseline for robotic pick-and-place end effectors, indexing tables, and quick-change packaging fixtures.

Tolerance and Inspection Requirements

Precision locator plates demand tight manufacturing tolerances to keep packaging machine alignment exact during high-speed operations. We inspect every plate to verify that all mounting features and datum surfaces match customer print specs before shipment.

Hole Position and Center-Distance Inspection

Accurate hole patterns prevent binding during machine assembly and changeovers. We measure true position and center-to-center distances on all locating pin holes and dowel features.

• • True Position Tolerances: Maintained within ±0.0005 in (±0.012 mm) for tight dowel pin alignment.
  • Pin Pitch & Distance: Verified with precision pin gages and optical measurement systems.
  • Hole Diameters: Checked via calibrated bore gages to guarantee precise press-fit or slip-fit tolerances.

Flatness and Datum Relationship Verification

A warped machine assembly plate ruins component alignment. We verify primary, secondary, and tertiary datums on precision surface plates to maintain proper geometric controls across the mounting surface.

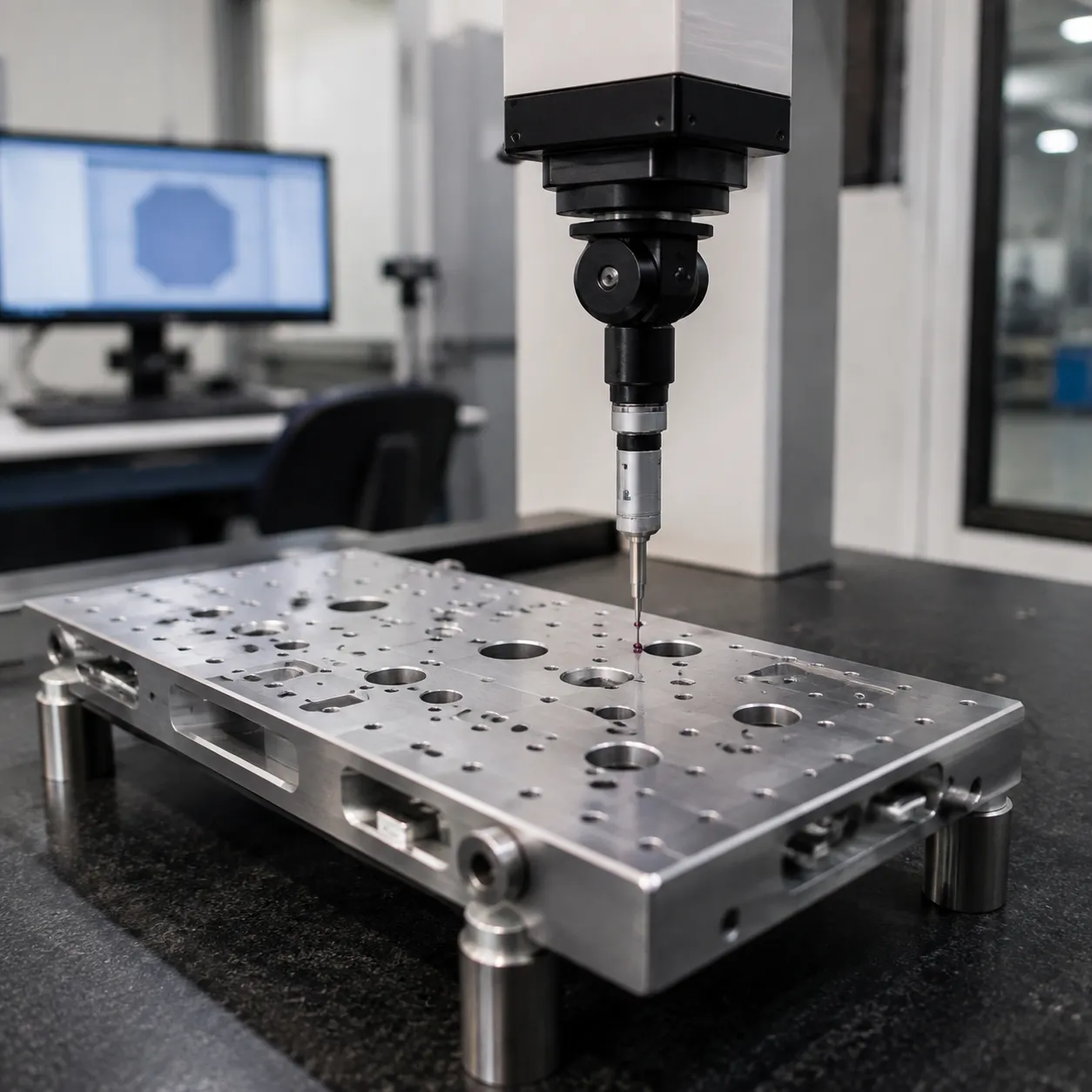

CMM Inspection of Critical Geometric Features

For complex CNC machined locator plates with multi-axis features, we run automated Coordinate Measuring Machine (CMM) routines. Using high-precision tactile probes, our equipment maps complex hole patterns and strict GD&T callouts across the entire plate profile. You can explore our dedicated quality inspection capabilities to see how we maintain micron-level accuracy.

Inspection Reports According to Customer Drawing Requirements

We tailor quality documentation directly to your project requirements. Every batch ships with the exact verification reports your quality system demands:

• • First Article Inspection Reports (FAIR): Complete feature-by-feature verification mapped to your print numbers.
  • CMM Dimensional Logs: Detailed raw coordinate data and GD&T pass/fail outputs.
  • Material & Heat Treat Certifications: Traceable raw material lot reports and surface finishing documentation.

Replacement and Custom Locator Plate Manufacturing

We manufacture high-precision locator plates tailored to your exact machinery specifications, providing reliable replacement parts and custom builds that integrate seamlessly into your packaging operations.

Manufacturing from 2D Drawings and 3D CAD Models

We produce every CNC machined locator plate directly from your native engineering files, including STEP, IGES, DXF, DWG, and detailed PDF drawings. Our production process guarantees exact translation of your critical geometry, strictly adhering to specified hole patterns, thread callouts, and datum references.

Reverse Engineering from Existing Parts When Appropriate

When legacy CAD files or original drawings are unavailable, we offer full reverse engineering services for worn or damaged machine assembly plates. Using CMM coordinate measuring and high-precision scanning tools, we recreate accurate 3D models that replicate original mounting positions and critical dowel pin alignment features.

Prototype, Replacement, and Batch Production

Our machining facility supports flexible production volumes tailored to your schedule:

• • Prototypes & One-Offs: Rapid manufacturing for custom packaging equipment builds or single replacement parts.
  • Production Batches: Repeatable manufacturing of identical precision mounting plates across multi-unit line rollouts.
  • Material Versatility: Machined in 6061 aluminum, 300-series stainless steel, tool steels, or custom alloys—matching the durability standards of our specialized titanium guide components for packaging lines.

What Information to Provide for a Quotation

To receive an accurate quote and production timeline for custom packaging machine change parts, provide the following details:
