Custom CNC Parts for Dairy Processing Equipment
Drawing-based parts for yogurt fillers, cheese vats and related dairy machinery. Specify the mating interfaces, cleaning conditions and inspection scope before quotation.
Send Drawings for a QuoteDairy-Equipment Parts and Interfaces
Filling Pistons
Include piston diameter, mating-cylinder fit, seal-groove geometry and runout datums. Fill accuracy and leakage require complete-assembly validation.
yogurt filling pistonsAgitator Shafts
Provide shaft length, journal fits, drive interfaces, straightness and the supported measurement condition.
cheese-vat agitator shaftsValve Bodies and Sleeves
Define sealing faces, bore fits, threads, passages and surface texture. Any secondary finishing needs an agreed route.
316L filling valve bodiesMounting and Locating Parts
Specify datums, mounting-hole positions and mating-part geometry for housings, spacers and locating components.
CNC turning scopeSpecify Dairy Product and Cleaning Conditions
State whether a component contacts the product, a seal or an external washdown environment. Include cleaning chemicals, temperature, concentration and exposure details needed by the designer to select material and finish.
316L is a customer-specified material option, not a default guarantee against corrosion or contamination. Food-contact documents and any application-standard requirements must be identified before ordering; availability and acceptance evidence are confirmed for the project.
Actual Machining Scope

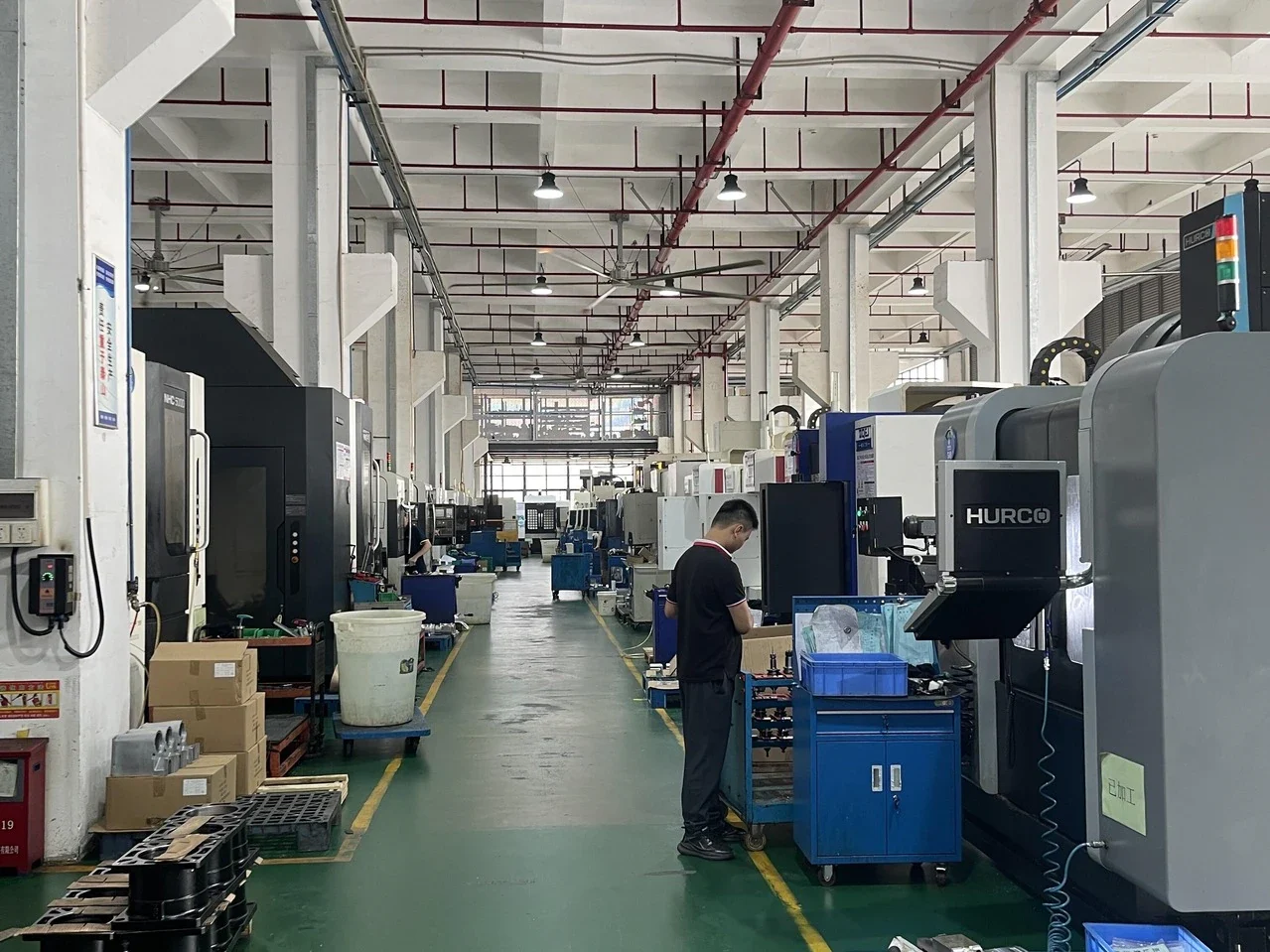

Our Wuxi machining base focuses on CNC milling and turning. We have no in-house 5-axis, EDM or wire-cutting equipment. Additional processes are confirmed separately for the specific part.
Achievable tolerances, part-size suitability, workholding and tool access are reviewed from the drawing. No fixed equipment count, workshop area or universal machining tolerance is assumed.
See our CNC milling scope and CNC turning scope.
Inspection and Material Documents by Order

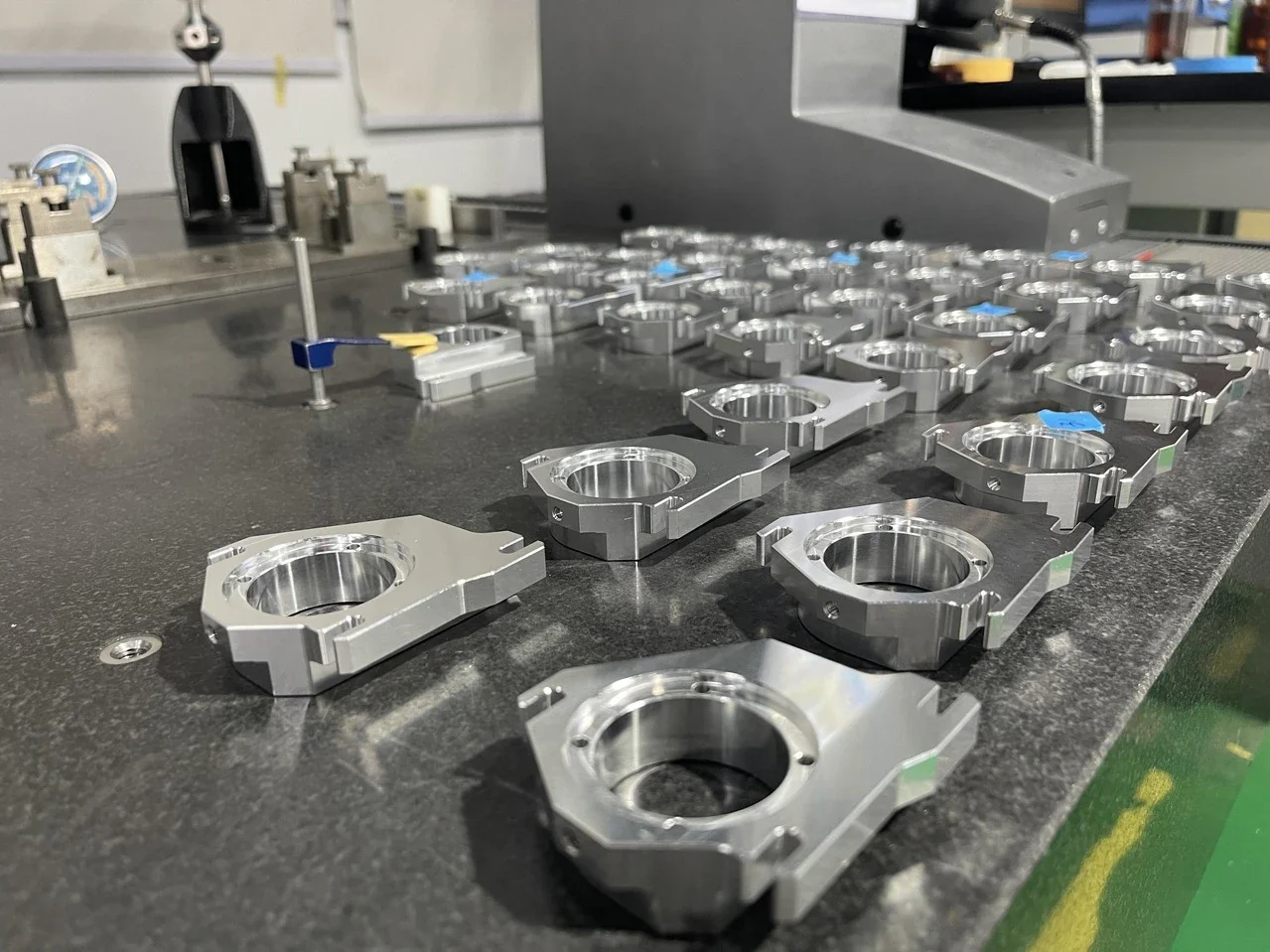

Identify critical dimensions, datums, surface texture, edge conditions and the required inspection report. Measurement method, equipment access and checking locations are confirmed before production.
Material certificates, heat-number traceability and any application-specific documents must be requested in the RFQ. Availability is confirmed for the selected stock and order. EN 10204 3.1 documents and regulatory or hygienic certifications are not included by default.
Review our drawing-based inspection information. Assembly fit, equipment function and cleaning performance require validation by the equipment owner.

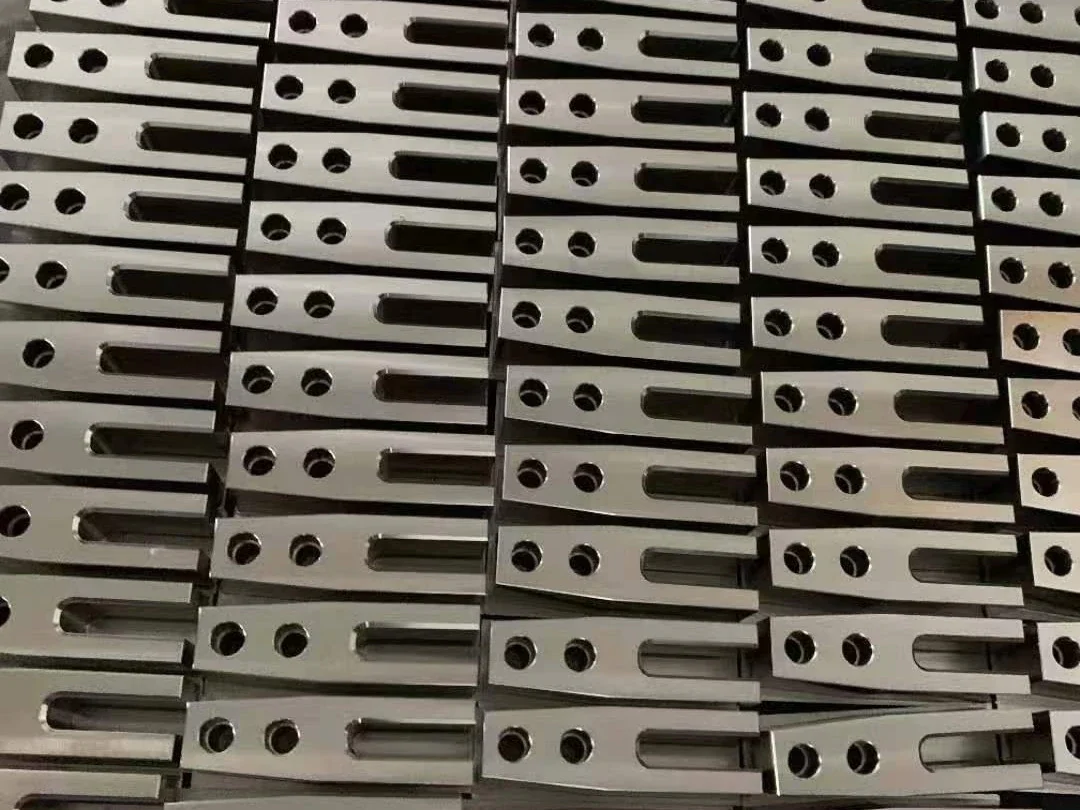

Replacement and Batch Orders
Provide the approved drawing revision and mating-part information for replacement components. A worn sample may support review, but reconstructed dimensions need approval before manufacture. Material, geometry or finishing substitutions also require approval.
Prototype and batch quantities are reviewed separately. Price and lead time follow the confirmed material, machining, finishing and inspection route.
Request a Drawing-Based Quote
- Current 2D drawing and 3D model with revision.
- Material grade, condition and required documents.
- Critical fits, datums, surface texture and edge requirements.
- Mating interfaces, application conditions and inspection scope.
- Quantity, delivery destination and requested date.
