Custom CNC Parts for Food Processing Equipment
Drawing-based components for food-equipment OEMs and maintenance teams. Send the approved design, quantity and inspection requirements for machining-route review.
Send Drawings for a QuoteFood-Equipment Components We Review

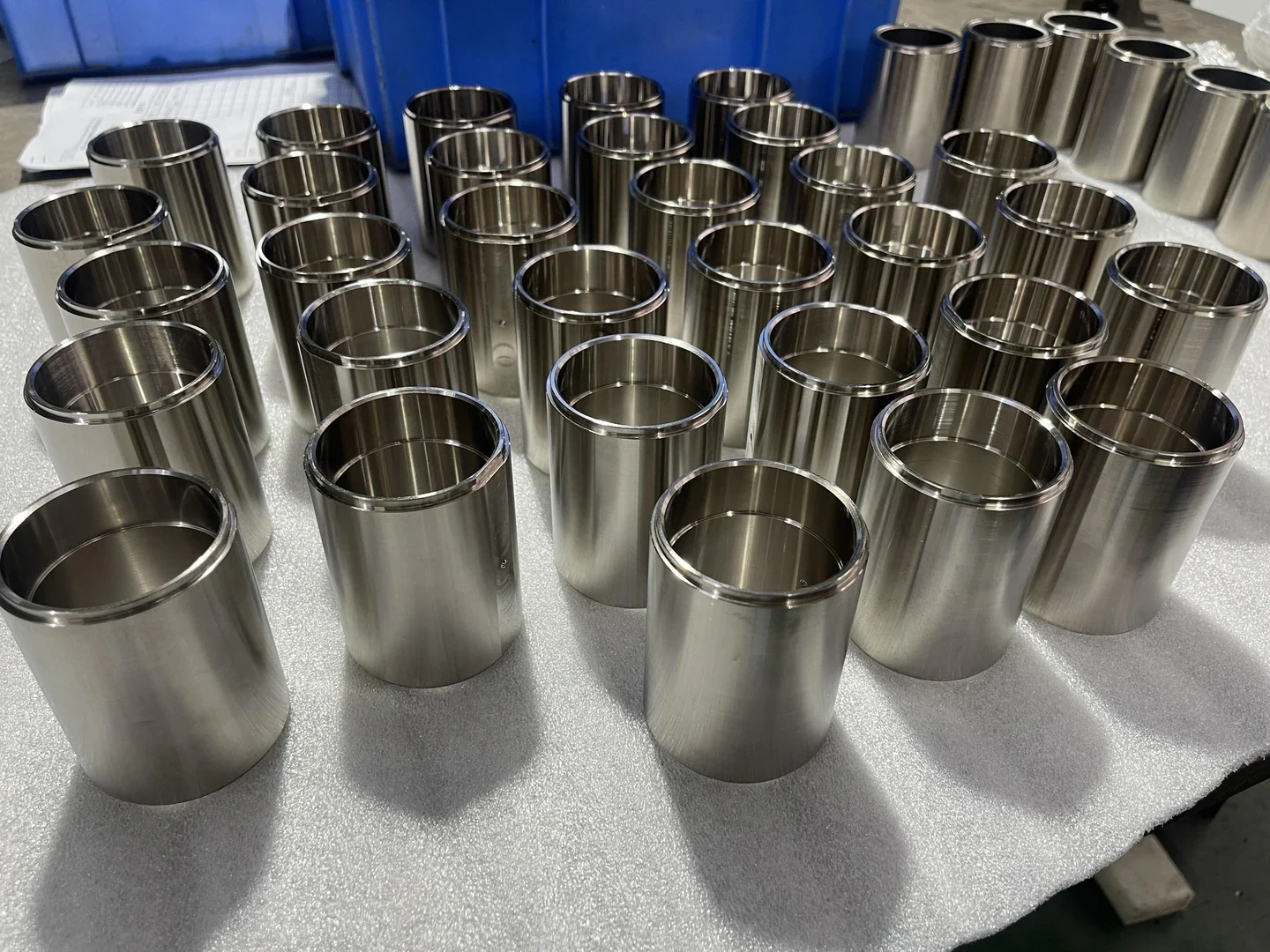

Filling and Dosing Parts
Valve bodies, piston components, sleeves and guides require clear mating fits, seal geometry and surface requirements.
316L filling valve bodiesConveyor and Washdown Components

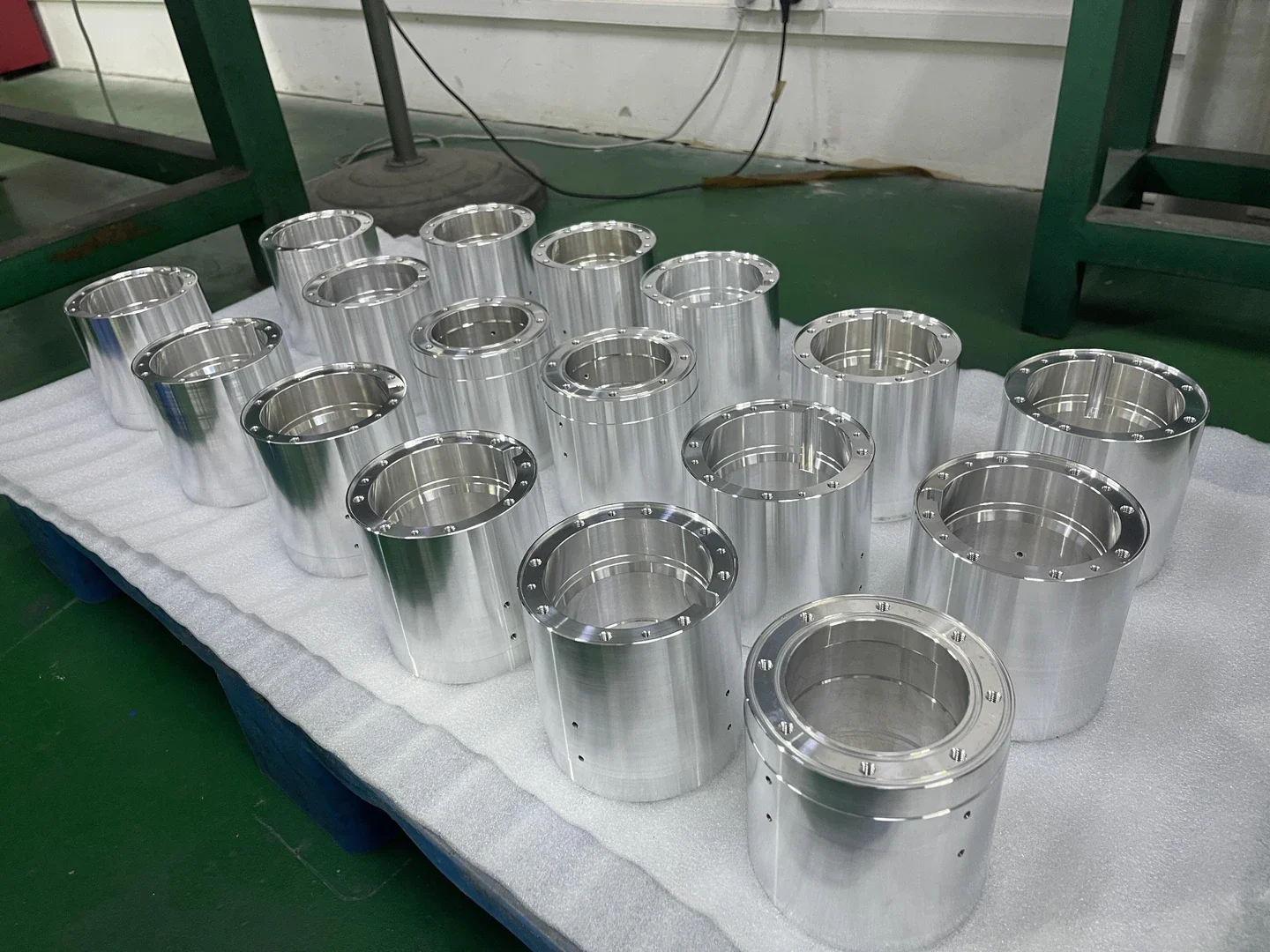

Bearing housings and locating parts are reviewed for mounting interfaces, bore fits, seals and accessible edge finishing.
316L bearing housingsShafts and Rotating Interfaces
Specify shaft diameters, drive connections, datums and the supported inspection condition. Assembly balance and operating performance require separate validation.

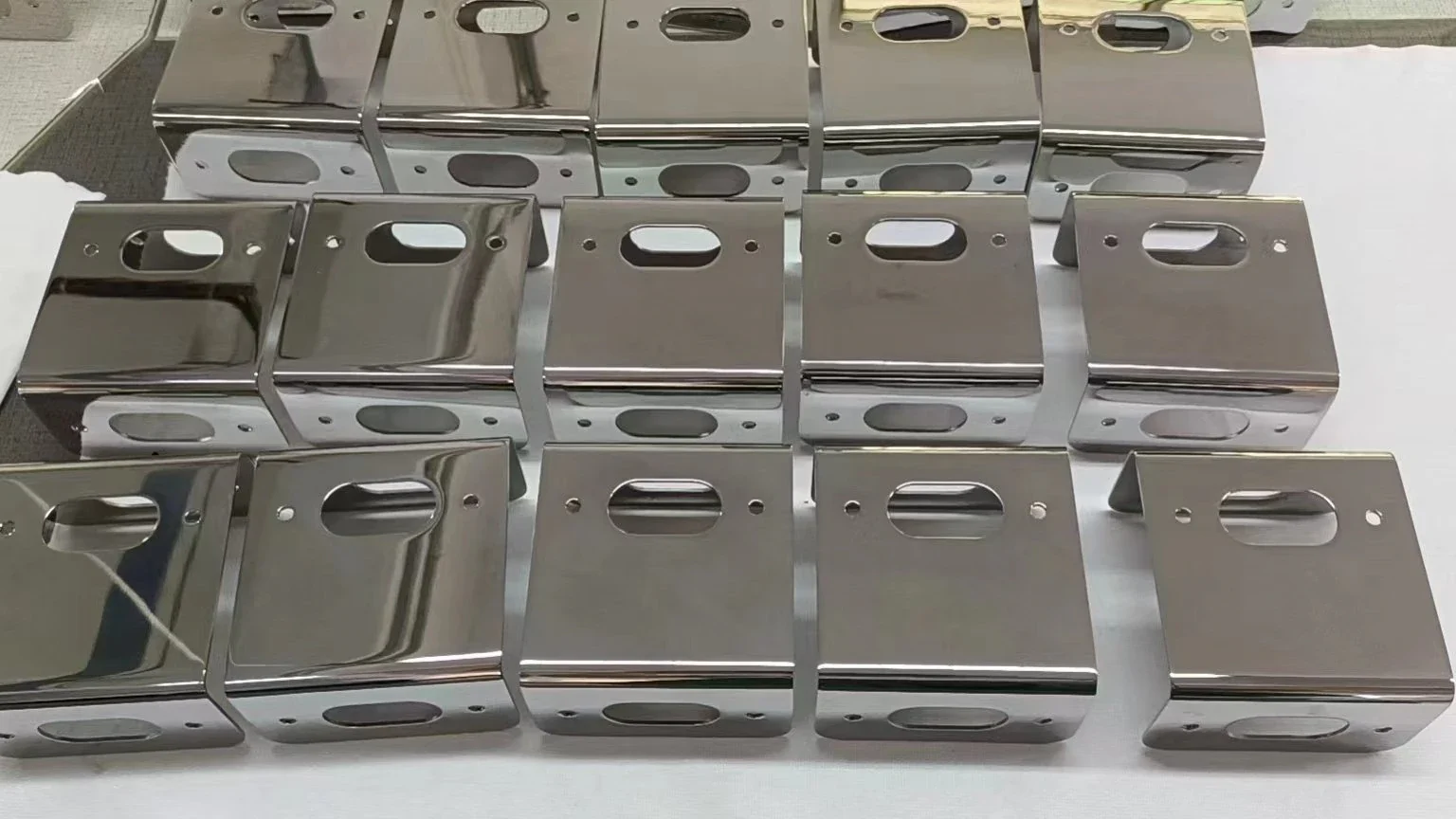

316L agitator shaftsPlates, Brackets and Handling Parts
Define hole position, flatness, contact geometry and material for structural and container-handling components.
packaging machine platesFood Contact and Cleaning Requirements
Identify product-contact areas and the intended cleaning chemicals, temperature and exposure conditions. Material grade, design details and surface finish are reviewed against the specified application. CNC machining does not establish food-contact certification, cleanability, contamination prevention or CIP/SIP compatibility by itself.
Specify burr acceptance at cross-holes, seal-entry edges and accessible passages. The equipment designer validates drainage, cleaning and complete-system performance.
Actual Machining Scope
Our Wuxi machining base focuses on CNC milling and turning. We have no in-house 5-axis, EDM or wire-cutting equipment. Additional processes are confirmed separately for the specific part.
Achievable tolerances, part-size suitability, workholding and tool access are reviewed from the drawing. No fixed equipment count, workshop area or universal machining tolerance is assumed.
See our CNC milling scope and CNC turning scope.
Inspection and Material Documents by Order
Identify critical dimensions, datums, surface texture, edge conditions and the required inspection report. Measurement method, equipment access and checking locations are confirmed before production.
Material certificates, heat-number traceability and any application-specific documents must be requested in the RFQ. Availability is confirmed for the selected stock and order. EN 10204 3.1 documents and regulatory or hygienic certifications are not included by default.
Review our drawing-based inspection information. Assembly fit, equipment function and cleaning performance require validation by the equipment owner.
Replacement and Batch Orders
Provide the approved drawing revision and mating-part information for replacement components. A worn sample may support review, but reconstructed dimensions need approval before manufacture. Material, geometry or finishing substitutions also require approval.
Prototype and batch quantities are reviewed separately. Price and lead time follow the confirmed material, machining, finishing and inspection route.
Request a Drawing-Based Quote
- Current 2D drawing and 3D model with revision.
- Material grade, condition and required documents.
- Critical fits, datums, surface texture and edge requirements.
- Mating interfaces, application conditions and inspection scope.
- Quantity, delivery destination and requested date.
