5 Axis Machining for Complex Food Machinery Parts
High-precision custom 5-axis CNC machining for packaging and food processing equipment. Eliminate tolerance stack-up and streamline OEM production with ZSCNC's advanced manufacturing capabilities.
Why Complex Parts Are Better Suited to 5-Axis Machining
Manufacturing intricate components for the food-processing industry via traditional 3-axis milling introduces significant challenges, primarily because shifting a part across multiple setups causes cumulative positioning errors. Multi-face 5-axis CNC machining solves this by executing complex geometric operations under a single, unified setup—eliminating tolerance stack-up and ensuring flawless operational alignment.
The Pitfalls of Traditional Multi-Setup Milling
- Frequent Manual Setups: Relocating the part for every compound angle or deep cavity increases handling overhead and processing cycle times.
- Angular Deviations: Repositioning raw stock between fixtures inevitably introduces minor mechanical misalignments and rotational runout.
- Tolerance Stack-Up: As positioning discrepancies compound across multiple operations, achieving ultra-precise dimensional control becomes virtually impossible.
- Extended Lead Times: Dedicating extra labor to specialized fixture fabrication and repetitive alignment checks delays final delivery.

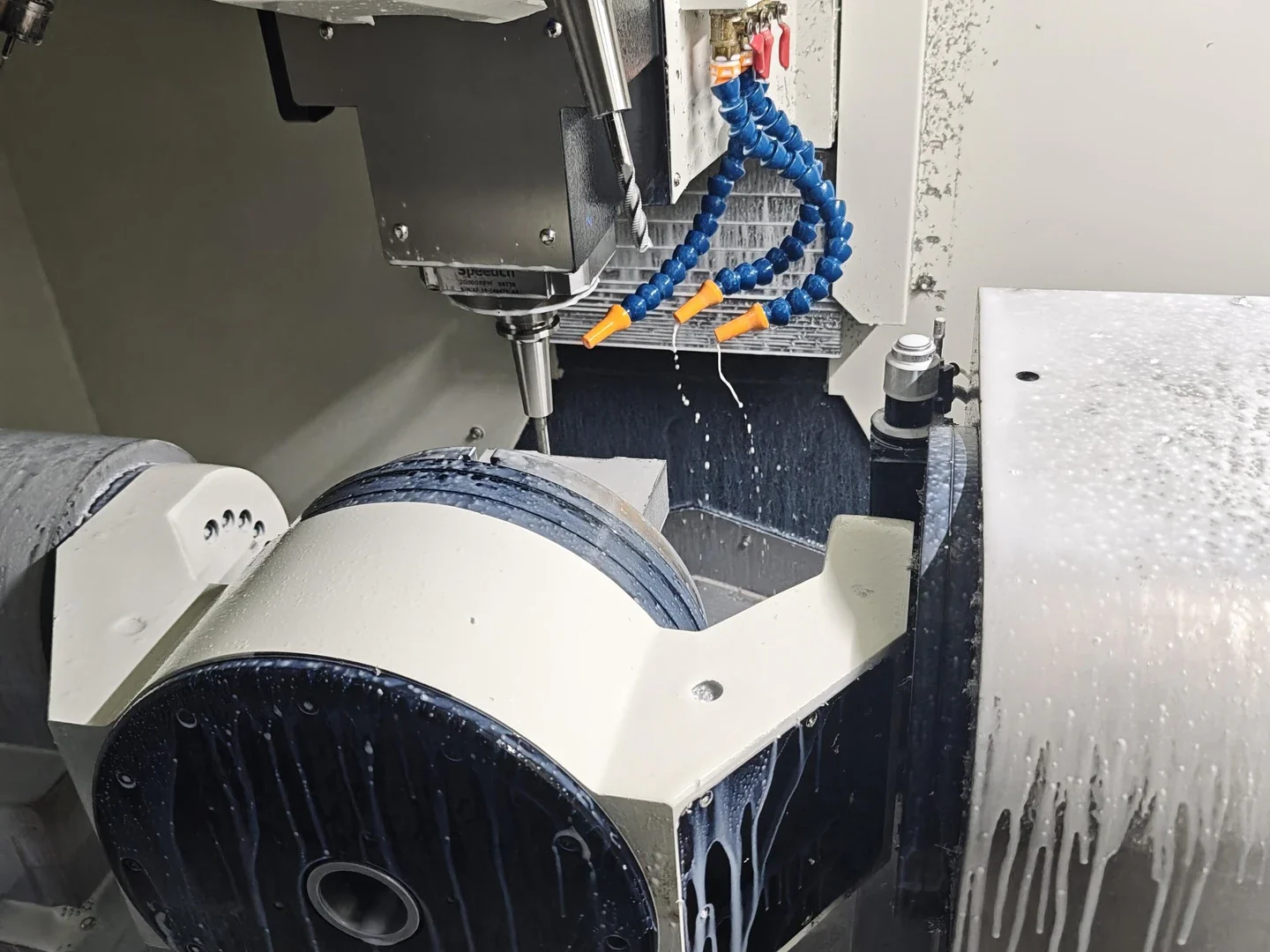

The 5-Axis Precision Advantage
Advanced 5-axis CNC machining removes fixture dependency by manipulating the cutting tool across the X, Y, and Z linear axes alongside the A and B rotational axes simultaneously. This continuous multi-angle mobility allows complex tools to reach hidden features from one secure origin point.
Key Engineering Benefits:
- Executes complex geometric contours and deep internal cavities in one seamless machining cycle.
- Maintains a rigid, unchanging reference datum to safeguard tight tolerances down to ±0.002 mm.
- Reduces manual handling and setup configurations, optimizing production throughput and lowering unit costs.
Angled Holes & Deep Undercuts
Traditional 3-Axis: Requires multiple angled fixtures and progressive setups, compounding alignment errors at each distinct plane.
5-Axis Execution: Accesses any complex angle in a single setup, driving tools straight to the target geometry with perfect alignment.
Deep Cavities & Contoured Surfaces
Traditional 3-Axis: Suffers from tool deflection and excessive wear due to long tool overhangs; requires constant re-indexing.
5-Axis Execution: Tilts the part or spindle to maintain optimal cutting angles, using shorter tools to deliver flawless surface finishes.
Irregular Profiles & Compound Geometries
Traditional 3-Axis: Relies on approximated stepped toolpaths that demand labor-intensive post-processing and manual polishing.
5-Axis Execution: True continuous path movement traces complex external surfaces perfectly, maintaining design intent out of the machine.
Intricate Hole Patterns & GD&T Compliance
Traditional 3-Axis: Positional accuracy degrades across varying surfaces as the workpiece is flipped, risking part rejection.
5-Axis Execution: Locks true positional tolerance from a solitary datum point, securing strict GD&T requirements effortlessly.
Critical Technical Requirements for Food Machinery OEMs
High-speed packaging lines and automated food processing equipment leave no room for manufacturing error. Components must lock perfectly onto mating assemblies, align securely with pneumatic sealing modules, and resist rigorous washdown cycles without loosening. Even a fractional variance in dimensional accuracy can result in premature component failure, dynamic seal leakage, or severe system downtime.
For intricate food-grade hardware used in the food automation industry, 5-axis CNC machining is not an optional premium—it is a technical necessity to avoid tolerance stack-up across multi-surface parts. By stabilizing complex spatial dimensions within a single continuous operation, ZSCNC provides global machinery OEMs with highly repeatable components that align exactly with strict industrial standards.
Whether your production run calls for custom knife holders, robust cutter seats, complex mounting brackets, or specialized internal structural mounts, our specialized 5-axis capabilities translate intricate engineering drawings into highly accurate, production-ready machine parts.

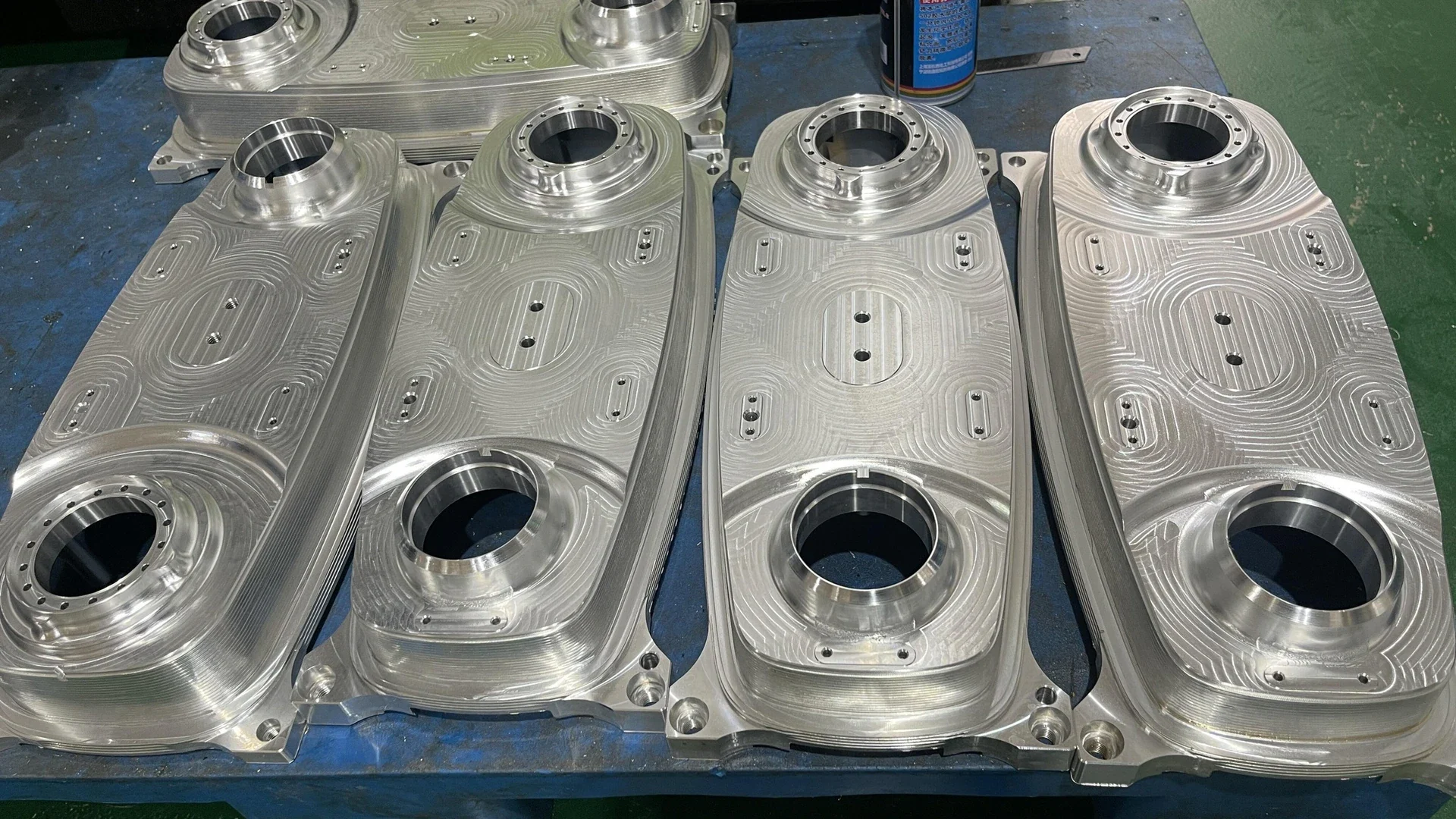

Custom 5-Axis Parts & Complex Geometries
We machine OEM spare and replacement parts for packaging and processing equipment. For customers in the packaging industry, ZSCNC specializes in manufacturing custom 5-axis parts and complex structural parts requiring extreme multi-face accuracy. Our production capabilities also support the food-processing industry and the beverage-processing industry, where critical component categories include knife holders, cutter seats, sealing modules, wear parts, mounting brackets, and fixtures. By utilizing continuous 5-axis CNC machining, we successfully produce intricate structures such as irregular connectors, internal equipment support parts, and precision locating parts that conventional milling cannot achieve.
Complex Geometries & Features We Machine
Food-Grade Materials & Hygienic Application Fit
Selecting the correct raw material ensures long-term compliance, structural longevity, and maximum safety in regulated production environments, including the food-processing industry and beverage-processing industry. ZSCNC regularly machines food-contact-ready components for hygienic production lines, matching precision 5-axis geometries with strict material integrity.
Common Materials & Selection Logic
Premium Metals
Stainless Steel 304/316L: The industry standard for high-acid environments. Delivers exceptional corrosion resistance, zero degradation under harsh CIP (Clean-in-Place) chemicals, and superior structural stability.
Aluminum Alloys: Selected for structural component efficiency, high strength-to-weight ratio, and rapid heat dissipation in secondary non-contact machine modules.
Advanced Engineering Plastics
PEEK, POM & UHMW-PE: Specialized thermoplastic polymers chosen for critical mechanical wear components. They offer excellent wear resistance, zero moisture absorption, low friction coefficients, and outstanding cleanability during intensive washdown cycles.
* All materials are fully certified with traceable material test reports to guarantee regulatory compliance.
Hygienic Design & Application Notes
Sanitary Components Manufacturing
Critical focus is placed on surface hygiene and flawless edge transitions. Our multi-axis milling services utilize advanced toolpath planning to completely eliminate micro-crevices where bacteria can pool.
Microscopic Burr Control
Strict burr control protocols ensure zero microscopic metal flakes or frayed plastic edges enter the food stream. Every part features optimized internal radii to facilitate rapid fluid drainage and self-cleaning behavior.
Operational Scenario Target
Engineered specifically for high-wear equipment used in the meat-processing industry and deep internal functional machine parts that require high-precision custom components capable of maintaining structural integrity over millions of operating cycles.
Our 5-Axis Machining Process and Quality Control System
From initial digital drawing verification to final global distribution, our Shanghai workshop runs a process-based system to support stable OEM production. We ensure complete transparency, absolute dimensional accuracy, and full material traceability at every phase of your project.
RFQ and Drawing Review
Our engineering team conducts an exhaustive analysis of your submitted 3D models and manufacturing prints. We evaluate geometric tolerances, surface finish specifications, and localized configurations to guarantee complete alignment with your product requirements.
Project Result: Elimination of structural discrepancies and immediate validation of target manufacturing specifications.
Material Selection and Manufacturability Check
We verify raw material specifications against strict food-processing-industry requirements and industrial hygiene standards. Design for Manufacturability (DFM) reviews assess complex component features to optimize production efficiency and prevent material stress fatigue.
Project Result: Verified sourcing of raw stock alongside optimized raw material yield to streamline project overhead.
CAM Programming and Toolpath Planning
Using advanced multi-axis milling programming software, our technical engineers map out complex toolpaths. This simulation phase minimizes machine rapid-travel cycles, prevents spindle collisions, and guarantees smooth surface finish transitions across compound angles.
Project Result: Faultless code execution paths that ensure smooth machining behaviors across non-standard configurations.

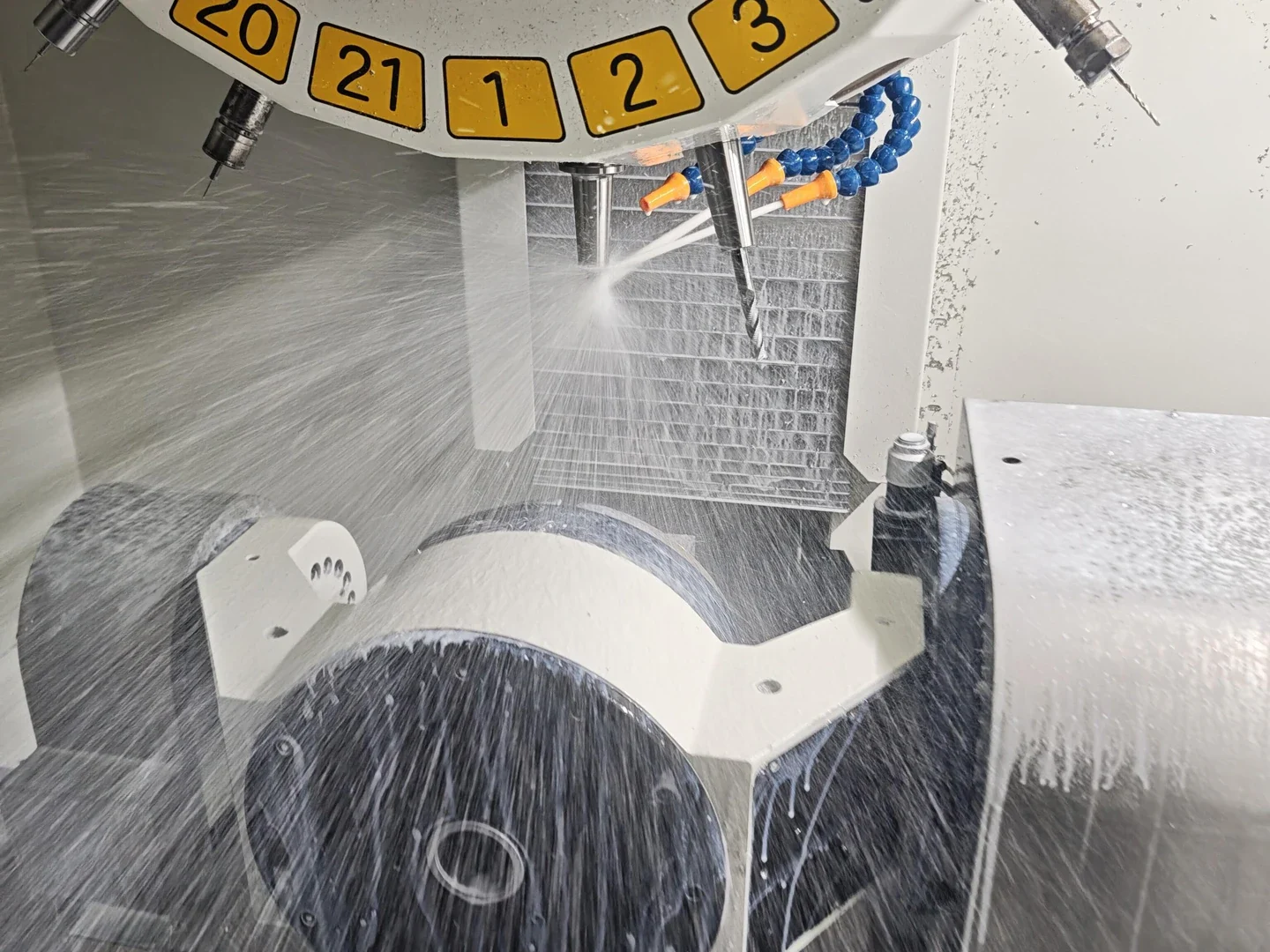

Machining, In-Process Control, and Dimensional Verification
Components are routed to our advanced 5-axis CNC machining assets. Operators execute continuous dimensional inspection updates during production runs, monitoring real-time tolerance drift and tools to maintain exact blueprint specifications.
Project Result: Production-line consistency with parts satisfying tight internal tolerances prior to moving to down-stream post processing.
Inspection, Report, Packaging, and Shipment
Finished parts undergo absolute quality assessments within our metrology environment. Products receive custom, impact-resistant protective packaging designed to preserve delicate surface profiles and critical edges through international global transit channels.
Project Result: Secured delivery of certified custom components with transparent documentation right to your facility.
Industry Applications & Machinery Integration Scenarios
Precision 5-axis CNC machining bridges the gap between complex geometric designs and reliable production floor performance. ZSCNC supports global food-processing industry and packaging industry OEMs across Japan, the U.S., and Europe with high-precision, multi-axis components engineered for demanding sanitary environments.
Packaging & Automation
Supplying custom components for cartoning, flow wrapping, tray sealing, and case-forming systems where multi-angle precision ensures smooth movement.
Beverage & Filling
Manufacturing high-speed bottling, filling, and capping line elements for the beverage-processing industry with continuous-curve profiles to prevent liquid stagnation.
Meat & Poultry Processing
Machining robust stainless steel components for automated cutting, portioning, and deboning systems requiring precise tool orientations.
Bakery, Dairy & Pet Food
Producing intricate forming dies, extrusion nozzles, and sorting modules optimized for hygienic food production environments.
Targeted Machinery Scenarios & Integration Value
Modern food processing machinery relies on highly compact assemblies, non-standard connection points, and complex mounting angles. Our 5-axis CNC machining capabilities are specifically tailored to solve these spatial and structural integration challenges, ensuring that custom OEM components drop seamlessly into complex production setups.
Where Our 5-Axis Parts Are Installed
- Equipment Frame Connection Points: Multi-face structural mounts that tie heavy assemblies together at non-orthogonal angles.
- High-Speed Motion Mechanisms: Lightweight, complex linkages and cam profiles machined from single billets for dynamic balance.
- Precision Guide Supports: Angled internal tracks and multi-axis bracket guides that direct conveyor chains or pusher blocks.
- Functional Mounting Bases: Intricate housings for sensors, pneumatic manifolds, and spray nozzles inside washdown zones.
Engineering Value Realized
- Tight Space Optimization: Consolidates multi-part welded brackets into a single, complex 5-axis machined component to reduce machine footprint.
- Elimination of Assembly Stack-Up: Machining compound angles in a single setup guarantees absolute concentricity and perpendicularity.
- Sanitary Reliability: Smooth transitions across intersecting deep cavities and complex holes eliminate physical crevices where food particles can lodge.
Why Choose ZSCNC as Your 5-Axis Machining Supplier
Partner with a specialized CNC machining factory that combines ultra-tight tolerances, scalable capacity, and proven expertise in food machinery OEM requirements. We also support the food-processing industry, the beverage-processing industry, and the meat-processing industry with precision-built components for demanding production lines.
End-to-End Delivery Capabilities
As an established high precision manufacturer, we support your workflow with precision CNC milling, advanced turning, and complex 5-axis machining. Every run includes professional sanitary finishing and full dimensional inspections.
Global OEM Partnership Experience
With 40% of our production dedicated to international export volume, we successfully match the engineering standards and quality compliance requirements of packaging equipment builders in Japan, the U.S., and Europe.
Our Value Proposition
We focus on uncompromising component quality, competitive pricing, absolute transparent trust, and continuous technical innovation to keep your industrial food equipment assembly lines running seamlessly.
5-Axis Machining FAQ & Custom Manufacturing Insights
The ZSCNC team supports the food-processing industry, the food automation industry, and custom machine parts built for demanding production environments.
Submit Drawing / Get Quote
High-precision custom 5-axis CNC machining for packaging and food processing equipment. Eliminate tolerance stack-up and streamline OEM production with ZSCNC advanced manufacturing capabilities.
Complex geometry in one setup
Reduce fixture stacks and improve positional accuracy on multi-face sanitary components.
Food-grade process control
Material certs and dimensional reports available with production releases.
Fast DFM feedback
Upload drawings for manufacturability notes and competitive 5-axis pricing.
