ZSCNC • Drawing-Based OEM Components
Custom Aluminum CNC Parts for Packaging Machinery
Drawing-based aluminum plates, brackets, mounts and related machine components. Specify alloy, temper, geometry and finish for a part-specific quotation.
Send Drawings for a QuoteAluminum Components and Drawing Requirements

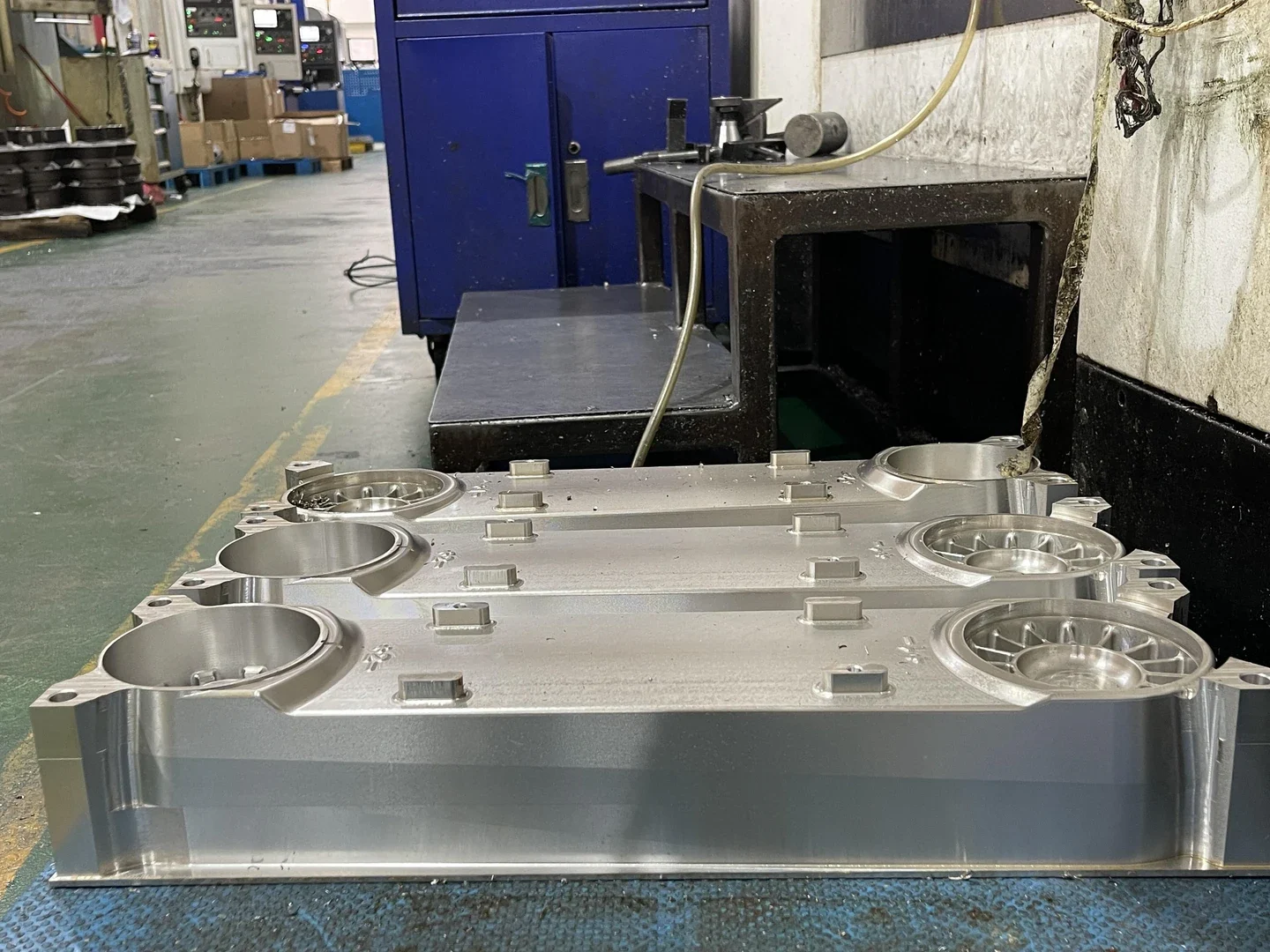

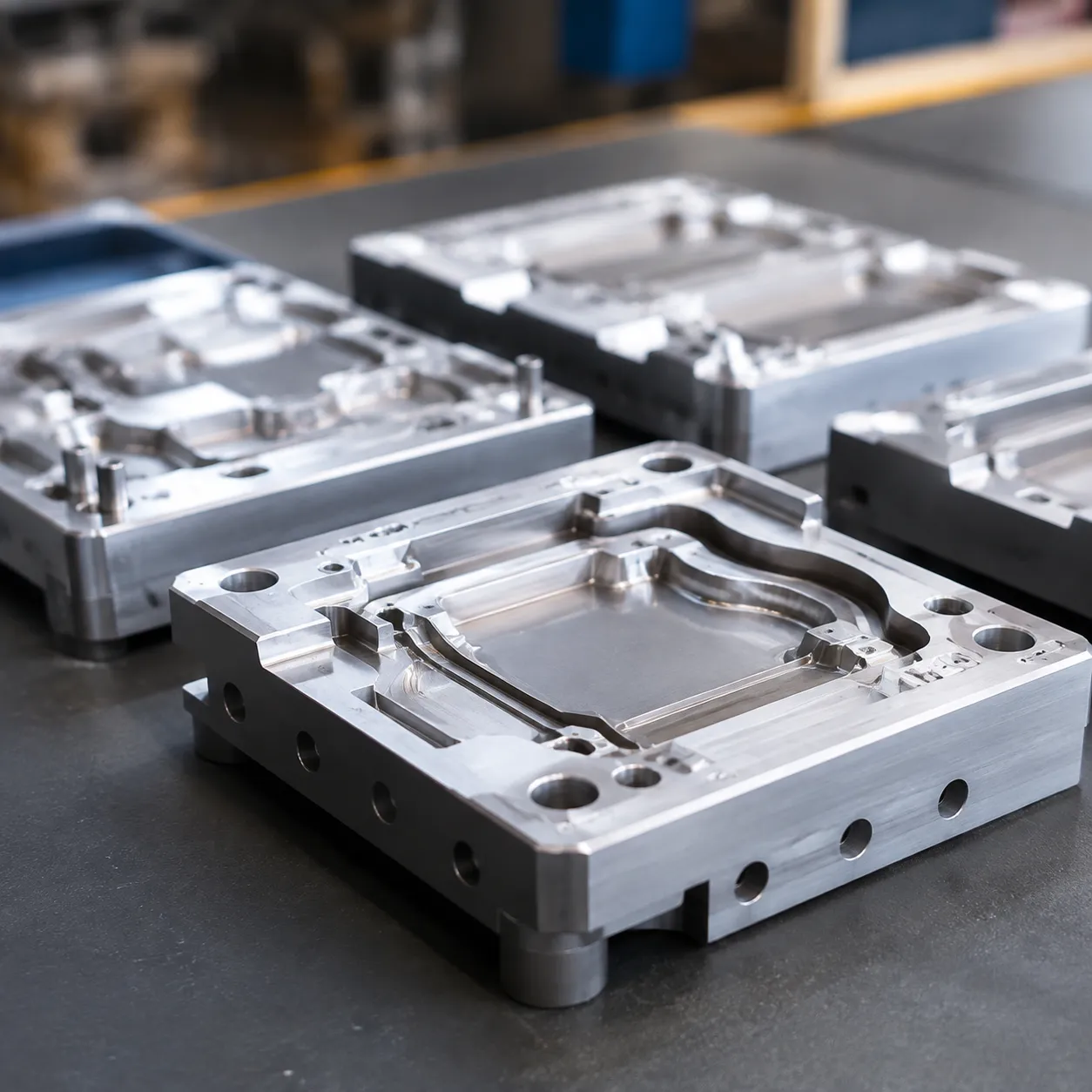

Packaging Plates
Identify flatness, hole positions, mounting datums and thickness. Discuss thin walls, broad faces and clamping access before acceptance.
machined packaging plates6061-T6 Components
Use the exact material specification on the drawing. State certificate and traceability needs before selecting stock.
6061-T6 packaging partsFormat and Change Parts
Define contact profiles, mounting interfaces and part revision. The equipment designer approves material and geometry for the handling application.
packaging change partsMilled and Turned Features
Specify critical fits, threads and mating dimensions rather than applying a universal tolerance to every feature.
CNC milling scopeAlloy, Temper and Surface Treatment
State the required alloy and temper, such as 6061-T6, 6082 or 7075 in the specified condition. The designer determines suitability for loading, contact conditions and the operating environment. Substitution requires customer approval.

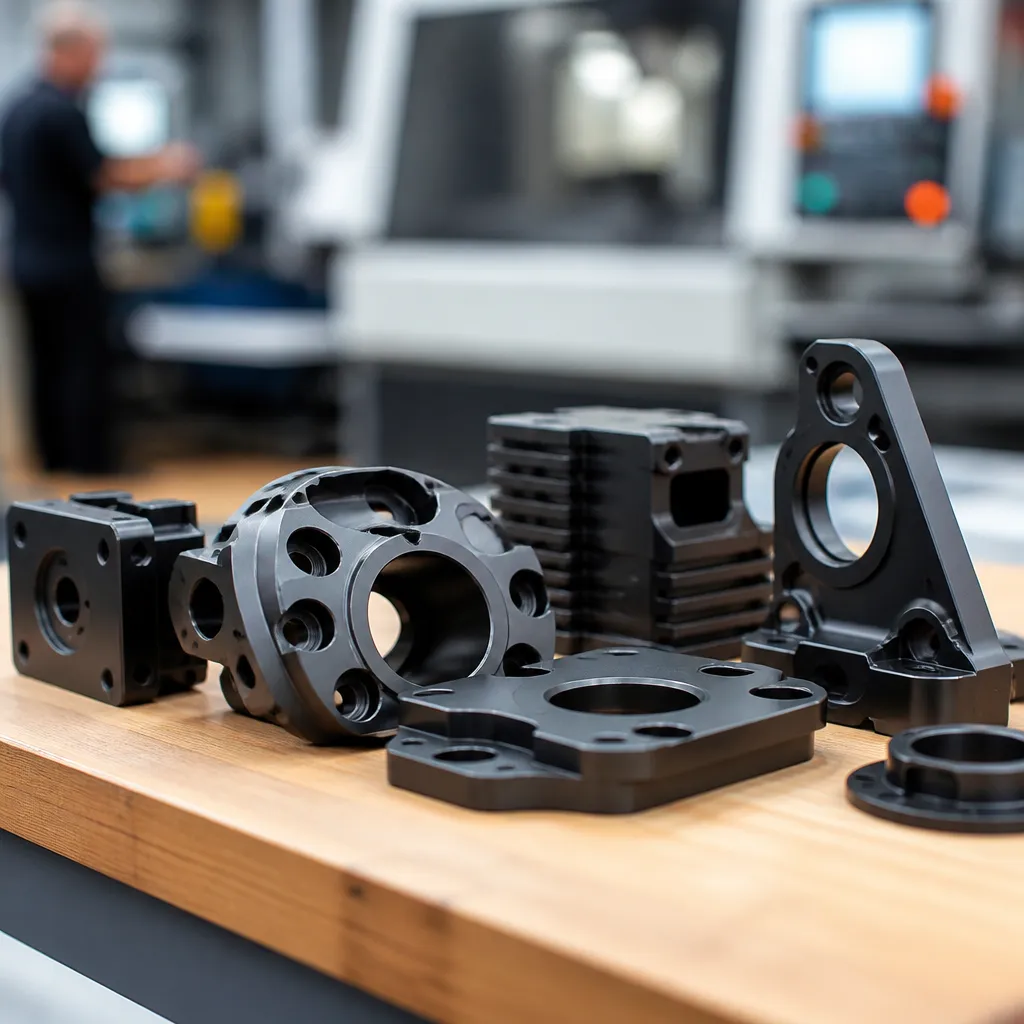

For anodizing or another coating, define treated areas, thickness, masking, appearance and dimensional allowance. Review fits after finishing. Aluminum or anodizing does not automatically establish food-contact suitability or resistance to every cleaning chemical.
Material certificates, exact stock condition and any application-specific documents are confirmed for the selected order. No fixed material-property or finished-part performance guarantee is inferred from the alloy name.

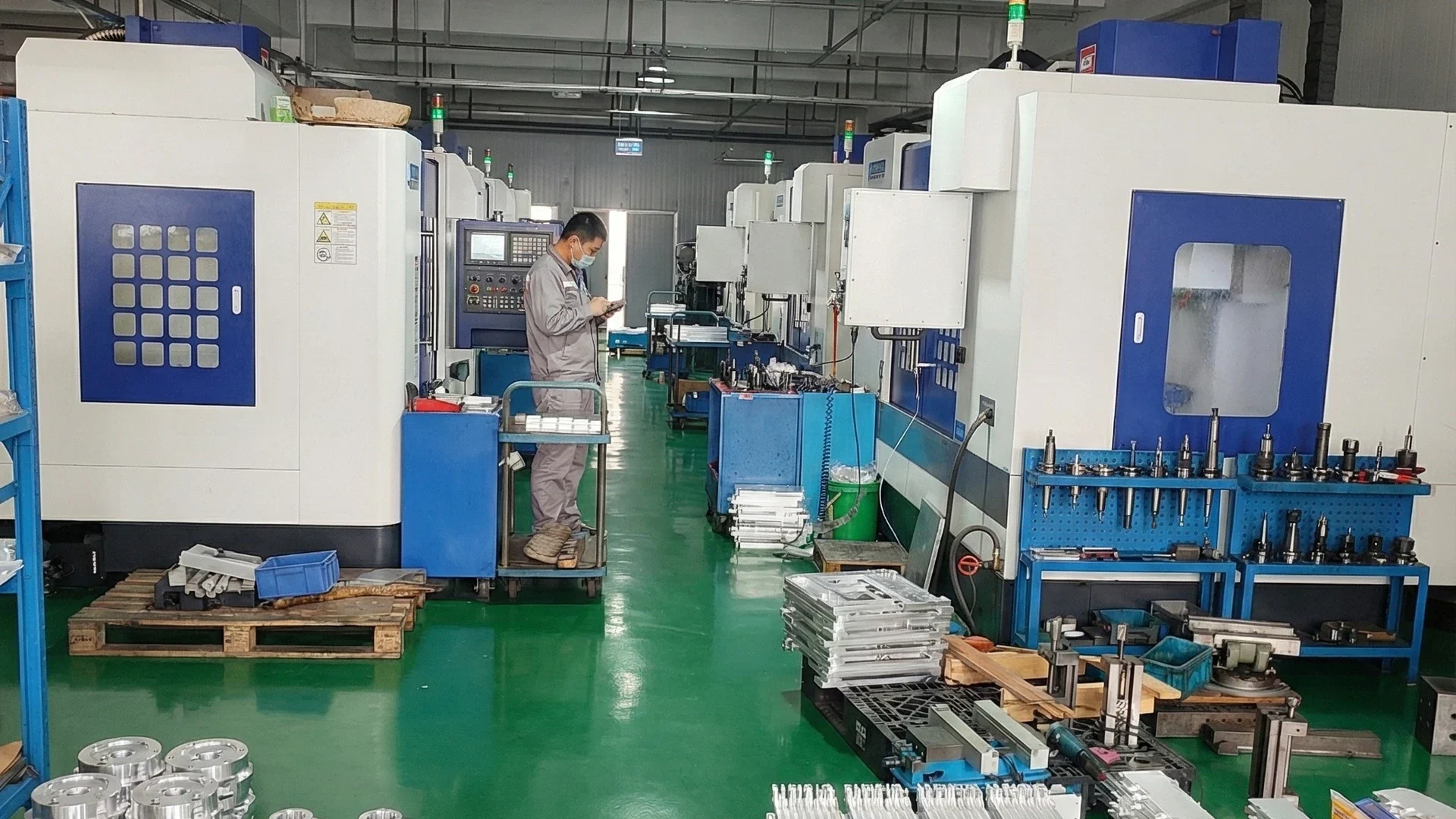

Actual Machining Scope
Our Wuxi machining base focuses on CNC milling and turning. We have no in-house 5-axis, EDM or wire-cutting equipment. Additional processes are confirmed separately for the specific part.
Achievable tolerances, part-size suitability, workholding and tool access are reviewed from the drawing. No fixed equipment count, workshop area or universal machining tolerance is assumed.
See our CNC milling scope and CNC turning scope.
Inspection and Material Documents by Order
Identify critical dimensions, datums, surface texture, edge conditions and the required inspection report. Measurement method, equipment access and checking locations are confirmed before production.
Material certificates, heat-number traceability and any application-specific documents must be requested in the RFQ. Availability is confirmed for the selected stock and order. EN 10204 3.1 documents and regulatory or hygienic certifications are not included by default.
Review our drawing-based inspection information. Assembly fit, equipment function and cleaning performance require validation by the equipment owner.
Replacement and Batch Orders
Provide the approved drawing revision and mating-part information for replacement components. A worn sample may support review, but reconstructed dimensions need approval before manufacture. Material, geometry or finishing substitutions also require approval.
Prototype and batch quantities are reviewed separately. Price and lead time follow the confirmed material, machining, finishing and inspection route.
Request a Drawing-Based Quote
- Current 2D drawing and 3D model with revision.
- Material grade, condition and required documents.
- Critical fits, datums, surface texture and edge requirements.
- Mating interfaces, application conditions and inspection scope.
- Quantity, delivery destination and requested date.
