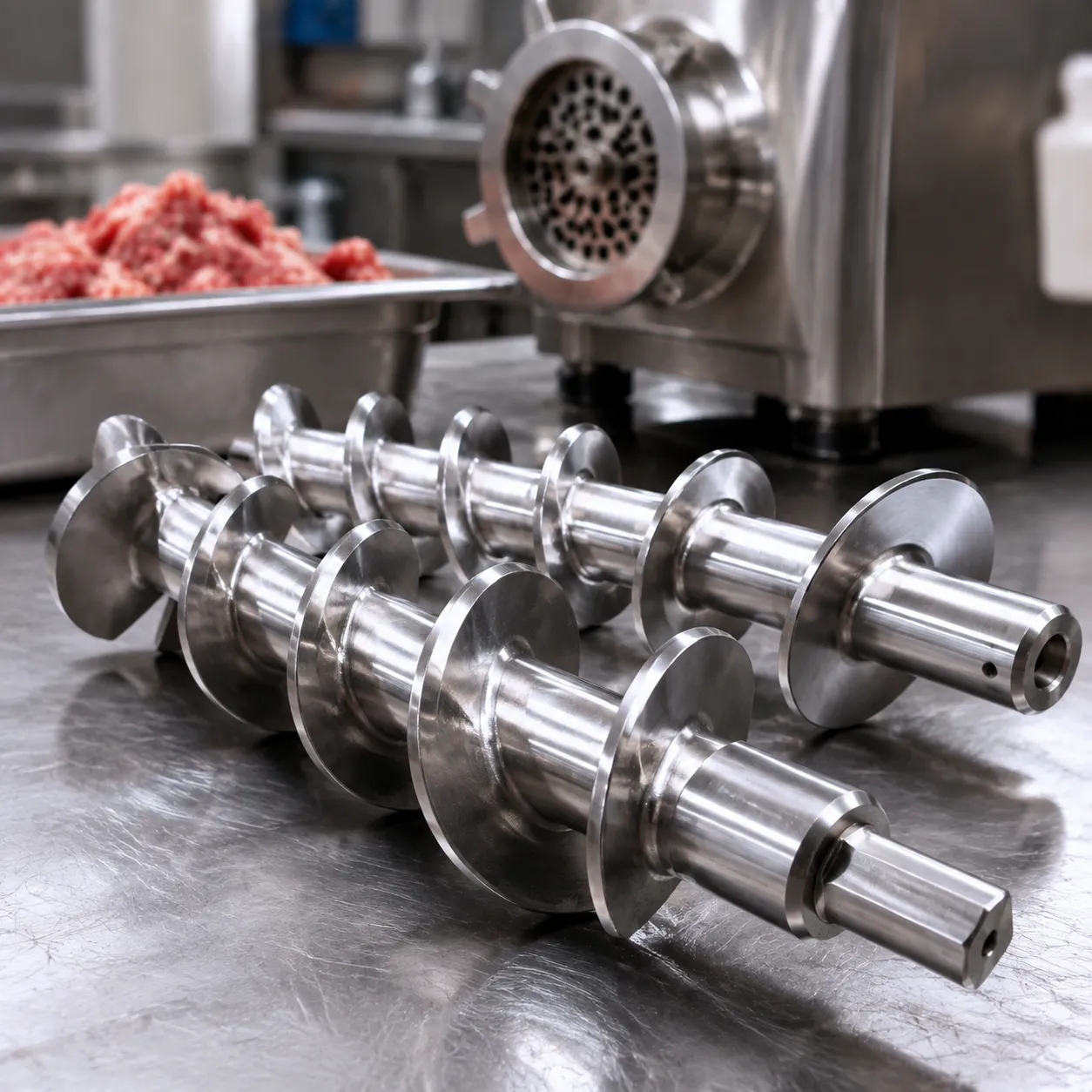

440C Grinder Augers for Meat Processing Equipment

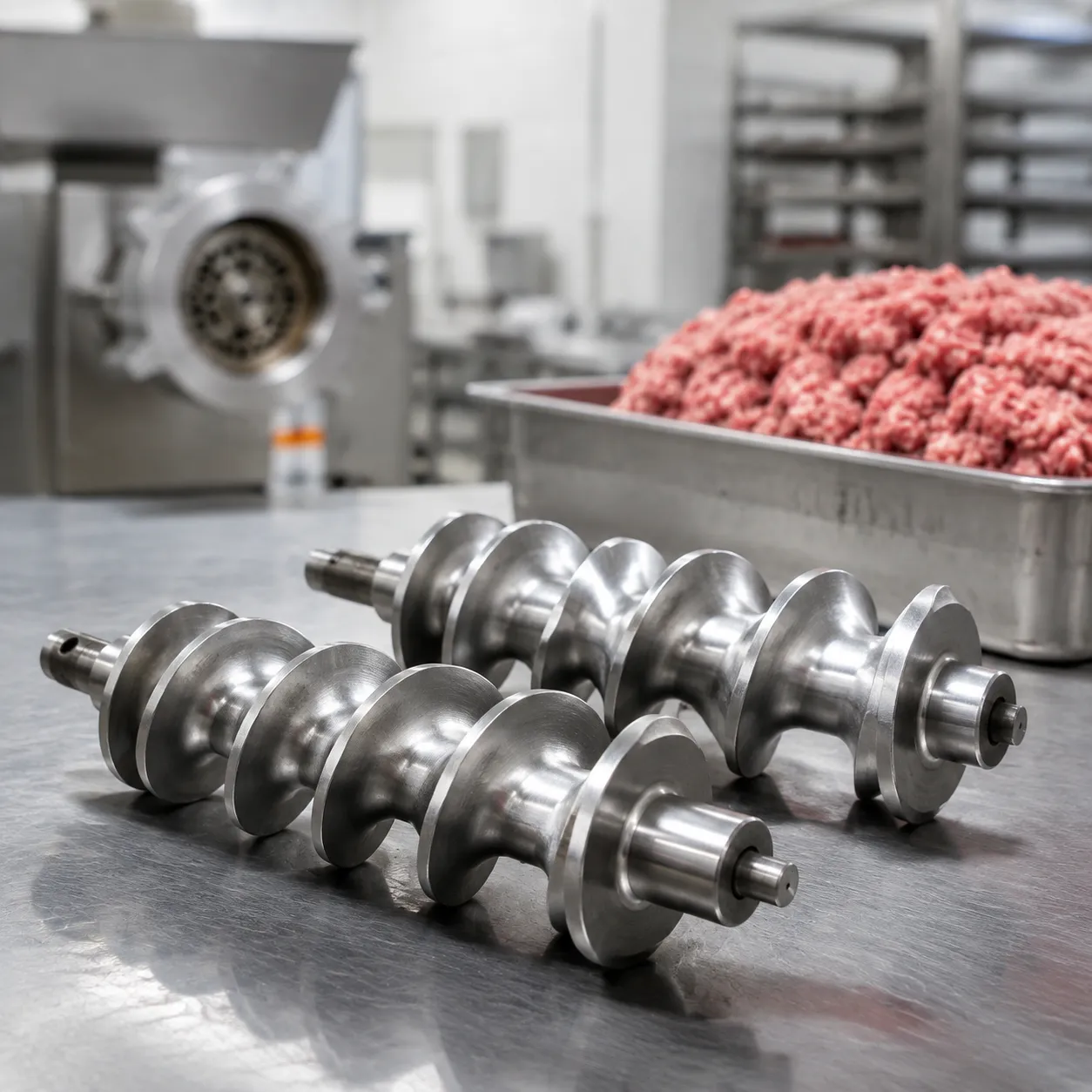

Custom 440C Grinder Augers for Meat Processing Equipment

Made to OEM Drawings and Existing Auger Specifications

ZSCNC manufactures custom meat processing equipment parts to OEM drawings, CAD files, and existing auger specifications. A DFM review checks geometry, fitment, machining feasibility, and cleanable design before production. The 440C stainless steel requirement, tolerances, and finishing process are reviewed against the application.

• • Custom 440C grinder augers
  • OEM replacement dimensions
  • CNC turning, milling, and 5-axis machining
  • Material traceability and inspection documentation
  • Surface finishing for hygienic equipment requirements

Prototype, Replacement and Production Augers

The manufacturing workflow supports rapid prototypes, replacement components, and production quantities. Each project is managed as a custom manufacturing inquiry, with engineering review before machining and quality checks during production.

ZSCNC provides one-stop support covering:

Why Use 440C Stainless Steel for Grinder Augers?

Wear Resistance for High-Contact Feed Screw Surfaces

For a custom 440C grinder auger, material selection should reflect the contact load, feed conditions, and expected service cycle. The flight and root surfaces experience repeated contact with meat and other process components, so we review the auger geometry and operating requirements before machining. Our DFM process helps confirm whether the specified material and finish suit the application.

Hardness and Heat-Treatment Considerations

Hardness and heat treatment must be defined with the OEM drawing or purchasing specification. They can affect dimensional stability, machining allowances, and the final fit of the meat grinder feed screw. We coordinate these requirements with post-treatment machining, inspection, and material documentation rather than treating 440C as a one-size-fits-all solution. Our 440C versus 316L material guide provides additional context for comparing stainless steel options.

Corrosion Considerations in Washdown Environments

Washdown exposure, cleaning chemicals, moisture, and surface condition should all be reviewed before approving 440C stainless steel for meat processing equipment. We consider the required finish, deburring, passivation, and electropolishing options as part of the sanitary design review. Material certificates and traceability data support controlled purchasing and consistent production for custom OEM meat grinder components.

Critical Features We Machine on Meat Grinder Augers

We manufacture custom 440C grinder augers from OEM drawings, CAD files, or existing auger specifications. Our CNC process focuses on the geometry and alignment points that affect feeding, cutting, and fitment inside meat processing equipment.

Flight Diameter, Pitch and Root Geometry

The flight diameter and pitch control how the meat grinder feed screw moves product through the grinding chamber. We review these features during DFM assessment to support accurate fitment and consistent operation.

Key geometry includes:

• • Flight outside diameter
  • Flight pitch and spacing
  • Root diameter
  • Flight thickness
  • Transition areas between the flight and shaft

Shaft Journals, Keyways and Drive Interfaces

Shaft journals and drive features must match the grinder housing, bearing arrangement, and drive system. We machine these areas to the supplied drawing requirements, including keyways and other specified interfaces.

Knife and Grinder Plate Interface Dimensions

The front interface of a meat grinder auger must align correctly with the knife and grinder plate assembly. We check the relevant shoulder, nose, and seating dimensions against the OEM specification.

Our machining approach also supports related sanitary components, such as sanitary knife holders and cutter seats for meat processing, where accurate interface dimensions are essential.

Runout, Concentricity and Axial Alignment

Runout and concentricity can affect auger rotation, knife contact, and wear within the grinding assembly. We inspect the shaft and flight geometry against the drawing requirements to verify axial alignment and consistent component positioning.

For complex custom profiles, our simultaneous 5-axis machining capabilities support accurate access to difficult surfaces while reducing setup-related variation.

CNC Manufacturing Process for 440C Grinder Augers

We manufacture custom 440C grinder augers from approved OEM drawings, CAD data, or existing auger specifications. Our process combines DFM review, CNC machining, inspection, and suitable surface finishing for meat processing equipment applications.

Turning and Milling of Auger Geometry

We use CNC turning, milling, and 5-axis machining to produce the feed screw body, flights, shaft features, and interface details. During the DFM review, we check the auger geometry, tool access, fitment, and production feasibility before machining begins.

Heat Treatment and Post-Treatment Machining

Heat-treatment requirements for 440C stainless steel should be defined in the drawing or RFQ. We coordinate the machining sequence around the required material condition and complete post-treatment machining where needed to restore critical dimensions and interfaces.

Material certificates, inspection records, and traceability data can support production documentation for OEM meat grinder components.

Grinding and Surface Finishing Where Required

Grinding may be used where the design requires tighter control of journals, contact surfaces, or alignment features. Surface finishing is selected according to the application, material condition, and cleanability requirements.

Our CNC surface finishing capabilities support finishing requirements for custom food processing equipment parts, including controlled finishing, passivation, and electropolishing where applicable.

Deburring and Cleanable Surface Requirements

We remove machining burrs from flights, roots, shaft features, keyways, and interface areas. The final inspection focuses on cleanable surfaces, dimensional conformity, and the absence of sharp edges or machining residue that could affect assembly or sanitation.

Each 440C grinder auger is reviewed against the approved drawing and agreed inspection requirements before shipment.

Quality Inspection for Custom 440C Grinder Augers

For custom 440C grinder augers, we inspect the dimensions and material requirements defined in the approved OEM drawing. Our quality process supports reliable fitment, hygienic operation, and traceable production for meat processing equipment parts.

Flight Diameter and Pitch Inspection

We verify key auger dimensions, including flight diameter, pitch, and root geometry, against the supplied CAD model or drawing. This helps maintain consistent feeding through the grinder assembly.

Shaft Runout and Concentricity Verification

Shaft journals, drive interfaces, and auger alignment are checked against the specified tolerances. CNC inspection supports stable rotation and accurate positioning within the meat grinder.

Hardness and Material Documentation

Material requirements, heat-treatment instructions, and applicable hardness values are reviewed against the order documents. We provide raw material certifications and traceability data where required.

First Article and Dimensional Inspection Reports

For prototype and production orders, we can prepare dimensional inspection documentation based on the approved requirements. Our quality inspection process supports clear reporting for OEM approval and supply-chain control.

Applications in Meat Processing Equipment

Industrial Meat Grinders and Mincers

We manufacture custom 440C grinder augers for industrial meat grinders and mincers based on OEM drawings, existing auger specifications, or application requirements. The feed screw geometry is reviewed for correct fit with the grinder body, knife, plate, and drive system.

Frozen and Chilled Meat Processing

Frozen and chilled meat applications place demanding mechanical loads on feed components. We assess the required 440C stainless steel auger design, contact surfaces, and dimensional tolerances through a DFM review before CNC production. This supports reliable integration into custom meat processing equipment.

Sausage and Further-Processing Equipment

Custom grinder augers can be developed for sausage preparation and other further-processing lines where consistent material transfer and hygienic construction are important. Our meat processing equipment parts are produced with traceable materials and inspection documentation, supported by experience in the meat processing industry.

Ordering Custom 440C Grinder Augers from ZSCNC

What to Include in Your RFQ

For a custom 440C grinder auger, I recommend sending the following information with your RFQ:

• • 2D drawings or 3D CAD files
  • Existing auger sample or key dimensions
  • Required quantity and production stage
  • Material and surface finish requirements
  • Operating application and equipment model
  • Inspection or documentation requirements

This information helps our engineering team review fit, manufacturability, and production needs before machining begins.

Drawing, Material, Heat Treatment and Tolerance Requirements

Please identify the required 440C stainless steel condition, heat-treatment expectations, critical tolerances, and functional interfaces on the drawing. Flight geometry, shaft journals, drive features, and knife or plate interfaces should be clearly defined.

Our DFM review supports practical design decisions for custom CNC meat processing parts. Material certifications, inspection reports, and traceability data can be included according to the project requirements. Our experience with custom 440C stainless steel CNC components also supports material-focused project evaluation.

Prototype to Small and Medium Batch Production

ZSCNC supports a one-stop manufacturing process from design review and rapid prototyping through production and finishing. This allows prototype or replacement meat grinder augers to be evaluated before production quantities are released.

Our CNC milling, turning, and 5-axis machining capabilities support custom production based on approved drawings and specifications. Each project is reviewed according to its required geometry, tolerances, inspection scope, and production volume.
